Product Name:

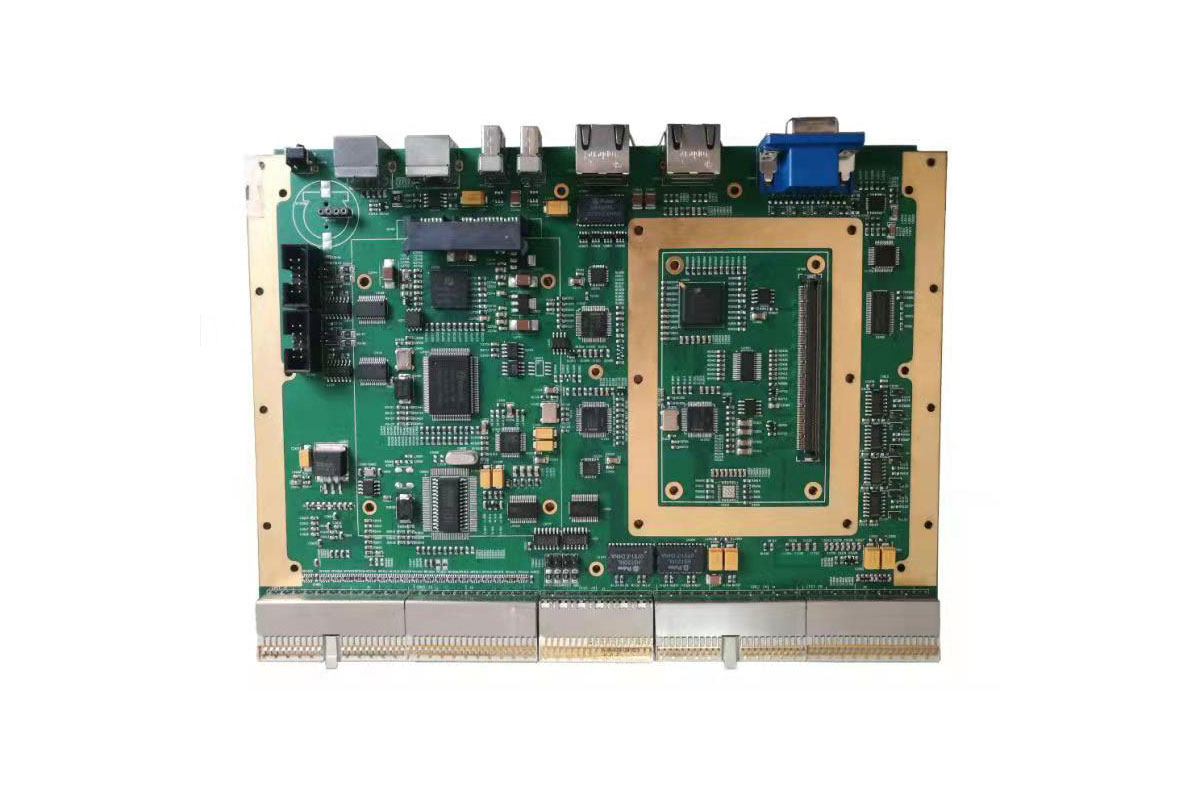

6U single board computer card an60n5 based on Intel processor

MetInfo enterprise content manager system | MetInfo CMS

Product introduction:

Product features:

 standard 33MHz 32bits CPCI bus, supporting 7 peripherals

 compatible with come-m CT10 n2600 / d2550 module

 1GB DDR on-board table memory, which can be expanded to 2G at most

 support 2 GB SSD onboard electronic disk, which can be expanded to 4G at most

 onboard 2.5-inch SATA standard electronic disk interface, standard 16bg SLC wide temperature 2.5-inch electronic disk

 provide standard VGA & DVI display interface, and VGA supports front and rear switching

 4-way Gigabit Ethernet interface, 10m / 100M / 1000m adaptive, supporting 2-way front and rear switching

 6 RS232 / 422 / 485 serial ports, with a maximum baud rate of 115200 B / s

 standard PS / 2 keyboard and mouse interface (both front and rear)

 8 USB2.0 interfaces, standard audio input and output ports

 4-way GPI, 4-way GPO, standard TTL level

 provide LTP parallel port, 1ms \ 10ms standard clock output

 watchdog timer, programmable real-time timer

 maximum power consumption of the whole board: < 10W, the board has its own cooling fin, and there is no fan cooling requirement

 provide windows, VX works 5.5 / 6.8 drivers

 working temperature: - 40 ° C - 85 ° C

 standard 6U CPCI board, overall dimension 160mm x 233.35mm, standard 4HP height (including onboard 2.5-inch hard disk and radiator)
